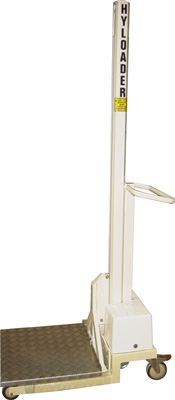

HYLOADER MINILIFT

The MiniLift stands out as a heavy duty lifter without compromise. It is rated to safely handle 200 Kgs at a 350 mm Load Centre and uses a 24 Volt battery circuit for lifting and lowering. It is designed for high uptime in Food, Beverage, Pharmaceutical and Factory applications. There is no ‘metal to metal’ contact at the mast/carriage assembly which eliminates any foreign particles migrating into your process. The MiniLift uses our extruded aluminium mast with an off-set nylon bearing system and a Poly Cog Belt with integrated stainless steel wires imbedded in the rear of the belt for maximum security and longevity. Drive to the belt is via a direct flange mounted electric motor to a worm type gearbox and a cog pulley on the output shaft. It features an Electronic Overload protection to preclude operators lifting above the rated capacity. Lifting and lowering limits are set via IP 67 Limit Switches. All other electrical hardware is enclosed in an IP 65 Enclosure. The MiniLift also offers three ‘Ramp Speed’ variants to tailor lift speed acceleration in critical applications or where loads being handled are very sensitive.

IDEAL FOR USE IN MANY AREAS INCLUDING

Hospital, warehouse, library, laboratory, catering, factory, etc
